Our Poles
Painted Poles and Bases had been the preferred coating for many years, but as maintenance costs increased, the need for maintenance-free products became a must! In the late 80's, CPI worked very closely with IDOT Officials at District 1 on prototype samples of Galvanized Poles and Bases. Once the benefits were shown, the finish specifications were changed. CPI's next undertaking was to convince the counties, municipalities and villages about the benefits of galvanized products. This was accomplished, and Galvanized Poles and Bases are now the standard when Steel Poles are specified.

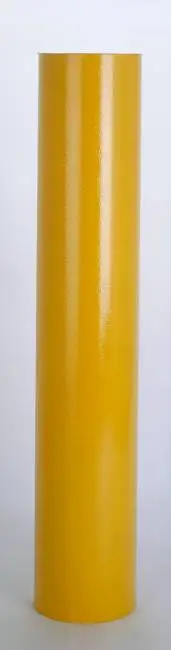

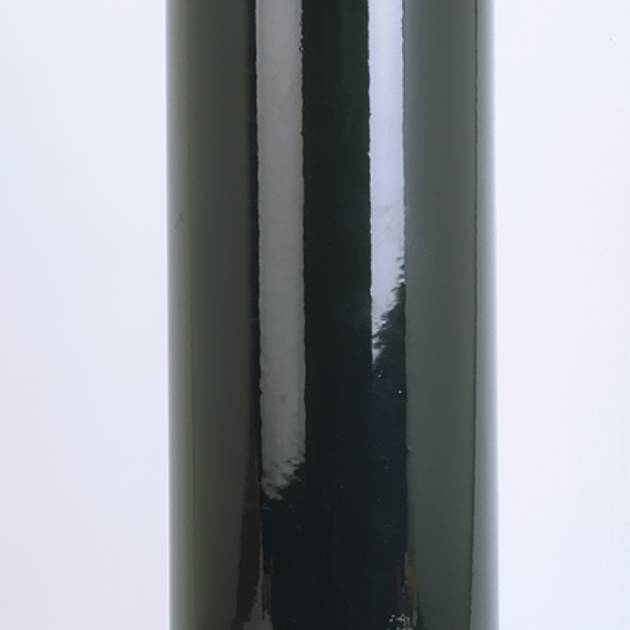

An additional problem concerning finishes arose, and CPI was again consulted. In this situation, Painted and Powder Coated Poles and Bases were required, but due to the high concentration of de-icing salt used, these products could not stand the test of time. After researching the problem, CPI came up with a solution: CPI Plasticoat. This is a heat applied coating which can withstand extreme conditions, offering excellent protection from sunlight, salt and temperature. Not only did we solve our customer's problem, we have also helped many others: this coating has been used on equipment along highways and bridges in inter-coastal waterways and ocean front areas.
An additional problem concerning finishes arose, and CPI was again consulted. In this situation, Painted and Powder Coated Poles and Bases were required, but due to the high concentration of de-icing salt used, these products could not stand the test of time. After researching the problem, CPI came up with a solution: CPI Plasticoat. This is a heat applied coating which can withstand extreme conditions, offering excellent protection from sunlight, salt and temperature. Not only did we solve our customer's problem, we have also helped many others: this coating has been used on equipment along highways and bridges in inter-coastal waterways and ocean front areas.

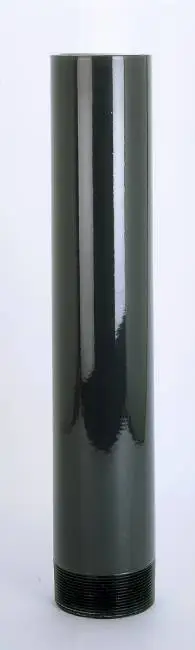

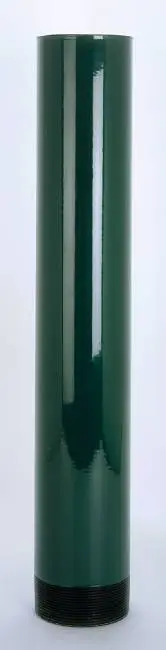

Component Products, Inc. manufactures Traffic Signal Poles in conjunction with our Traffic Signal Bases to ensure easy field assembly and custom fit.

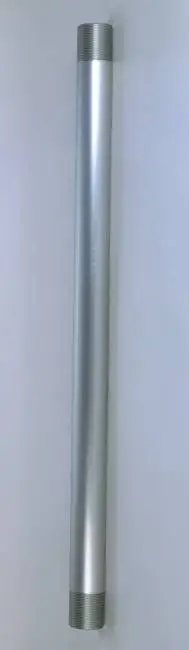

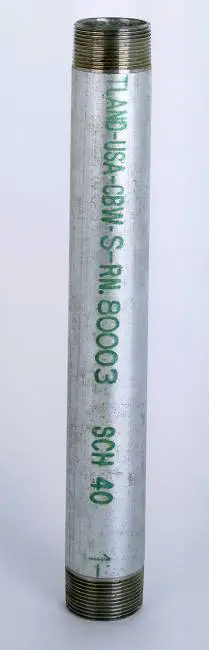

The following Steel Poles are available:Specifications: ASTM A53, ASTM SA106B, ASTM A53X52Schedules: 11 Gauge, 40 & 80Finishes: Hot Dipped Galvanized Painted Primed Powder Coated CPI PlasticoatThreads: American National Standard Pipe Threads ANSI B2.1Sizes: 2' - 40'The following Aluminum Poles are available:Specifications: ASTM B210, B221, B241, B429Gauges: 6061-T6, 6063-T6Schedules: 40 & 80Finishes: Natural Spun Anodize Clear Anodize Color Painted Powder CoatedThreads: American National Standard Pipe Threads ANSI B2.1Sizes: 2' - 28'

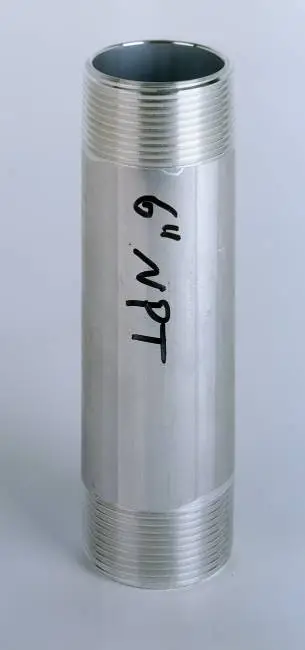

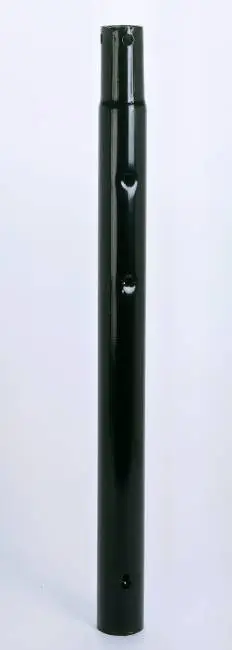

FABRICATION SERVICES FOR ALL POLES: Weld Nipples to Pole Weld Fixture to Pole Cut Handholes Slots for Direct Bury Flanges & Base Plates per Prints
PRODUCT NO. | DESCRIPTION | PRODUCT NO. | DESCRIPTION |

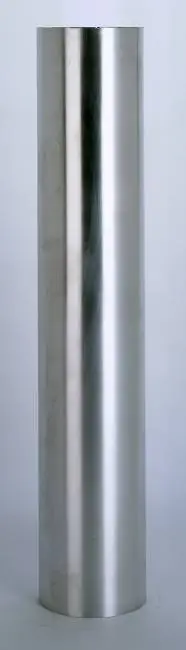

CPI-AP-2-40 | 2' ALUMINUM POLE SCH 40 | CPI-AP-15-40 | 15' ALUMINUM POLE SCH 40 |
CPI-AP-2-80 | 2' ALUMINUM POLE SCH 80 | CPI-AP-15-80 | 15' ALUMINUM POLE SCH 80 |
CPI-AP-3-40 | 3' ALUMINUM POLE SCH 40 | CPI-AP-16-40 | 16' ALUMINUM POLE SCH 40 |
CPI-AP-3-80 | 3' ALUMINUM POLE SCH 80 | CPI-AP-16-80 | 16' ALUMINUM POLE SCH 80 |
CPI-AP-4-40 | 4' ALUMINUM POLE SCH 40 | CPI-AP-17-40 | 17' ALUMINUM POLE SCH 40 |
CPI-AP-4-80 | 4' ALUMINUM POLE SCH 80 | CPI-AP-17-80 | 17' ALUMINUM POLE SCH 80 |
CPI-AP-5-40 | 5' ALUMINUM POLE SCH 40 | CPI-AP-18-40 | 18' ALUMINUM POLE SCH 40 |
CPI-AP-5-80 | 5' ALUMINUM POLE SCH 80 | CPI-AP-18-80 | 18' ALUMINUM POLE SCH 80 |
CPI-AP-6-40 | 6' ALUMINUM POLE SCH 40 | CPI-AP-19-40 | 19' ALUMINUM POLE SCH 40 |
CPI-AP-6-80 | 6' ALUMINUM POLE SCH 80 | CPI-AP-19-80 | 19' ALUMINUM POLE SCH 80 |
CPI-AP-7-40 | 7' ALUMINUM POLE SCH 40 | CPI-AP-20-40 | 20' ALUMINUM POLE SCH 40 |
CPI-AP-7-80 | 7' ALUMINUM POLE SCH 80 | CPI-AP-20-80 | 20' ALUMINUM POLE SCH 80 |
CPI-AP-8-40 | 8' ALUMINUM POLE SCH 40 | CPI-AP-21-40 | 21' ALUMINUM POLE SCH 40 |
CPI-AP-8-80 | 8' ALUMINUM POLE SCH 80 | CPI-AP-21-80 | 21' ALUMINUM POLE SCH 80 |
CPI-AP-9-40 | 9' ALUMINUM POLE SCH 40 | CPI-AP-22-40 | 22' ALUMINUM POLE SCH 40 |
CPI-AP-9-80 | 9' ALUMINUM POLE SCH 80 | CPI-AP-22-80 | 22' ALUMINUM POLE SCH 80 |
CPI-AP-10-40 | 10' ALUMINUM POLE SCH 40 | CPI-AP-23-40 | 23' ALUMINUM POLE SCH 40 |
CPI-AP-10-80 | 10' ALUMINUM POLE SCH 80 | CPI-AP-23-80 | 23' ALUMINUM POLE SCH 80 |
CPI-AP-11-40 | 11' ALUMINUM POLE SCH 40 | CPI-AP-24-40 | 24' ALUMINUM POLE SCH 40 |
CPI-AP-11-80 | 11' ALUMINUM POLE SCH 80 | CPI-AP-24-80 | 24' ALUMINUM POLE SCH 80 |
CPI-AP-11.25-80 | 11.25' ALUMINUM POLE SCH 80 | ||
CPI-AP-12-40 | 12' ALUMINUM POLE SCH 40 | ||
CPI-AP-12-80 | 12' ALUMINUM POLE SCH 80 | ||
CPI-AP-13-40 | 13' ALUMINUM POLE SCH 40 | ||
CPI-AP-12.4 | 12'5" ALUMINUM POLE PE606T6 | ||
CPI-AP-2.375-10 | 2 3/8 X 10' ALUMINUM POLE | ||
CPI-AP-2.5-40 | 30" ALUMINUM POLE TOE | ||
CPI-AP-SP-2-12 | 2" ALUMINUM SIGN POST X 12 | ||
CPI-AP-13-80 | 13' ALUMINUM POLE SCH 80 | ||
CPI-AP-14-40 | 14' ALUMINUM POLE SCH 40 | ||
CPI-AP-14-80 | 14' ALUMINUM POLE SCH 80 | ||

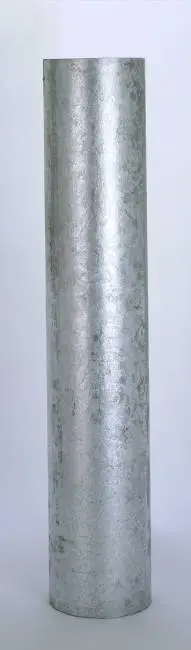

CPI-GP-02.5 | 2.5' GALVANIZED POLE | CPI-GP-10 | 10' GALVANIZED POLE |
CPI-GP-03 | 3' GALVANIZED POLE | CPI-GP-11 | 11' GALVANIZED POLE |
CPI-GP-04 | 4' GALVANIZED POLE | CPI-GP-12 | 12' GALVANIZED POLE |
CPI-GP-05 | 5' GALVANIZED POLE | CPI-GP-13 | 13' GALVANIZED POLE |
CPI-GP-06 | 6' GALVANIZED POLE | CPI-GP-14 | 14' GALVANIZED POLE |
CPI-GP-07 | 7' GALVANIZED POLE | CPI-GP-15 | 15' GALVANIZED POLE |
CPI-GP-08 | 8' GALVANIZED POLE | CPI-GP-16 | 16' GALVANIZED POLE |
CPI-GP-09 | 9' GALVANIZED POLE | CPI-GP-17 | 17' GALVANIZED POLE |

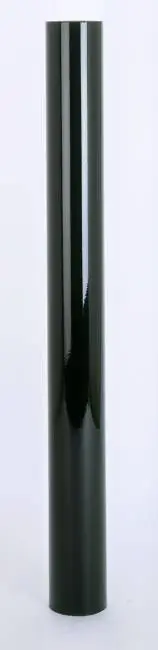

CPI-PTD-07-LW | 7' LW PAINTED POLE | CPI-PTD-12-LW | 12' LW PAINTED POLE |
CPI-PTD-07-STD | 7' STD PAINTED POLE | CPI-PTD-12-STD | 12' STD PAINTED POLE |
CPI-PTD-08-LW | 8' LW PAINTED POLE | CPI-PTD-13-LW | 13' LW PAINTED POLE |
CPI-PTD-08-STD | 8' STD PAINTED POLE | CPI-PTD-13-STD | 13' STD PAINTED POLE |
CPI-PTD-08.5-LW | 8.5' LW PAINTED POLE | CPI-PTD-14-LW | 14' LW PAINTED POLE |
CPI-PTD-09-LW | 9' LW PAINTED POLE | CPI-PTD-14-STD | 14' STD PAINTED POLE |
CPI-PTD-09-STD | 9' STD PAINTED POLE | CPI-PTD-15-LW | 15' LW PAINTED POLE |
CPI-PTD-10-LW | 10' LW PAINTED POLE | CPI-PTD-15-STD | 15' STD PAINTED POLE |
CPI-PTD-10-STD | 10' STD PAINTED POLE | CPI-PTD-16-LW | 16' LW PAINTED POLE |
CPI-PTD-11-LW | 11' LW PAINTED POLE | CPI-PTD-16-STD | 16' STD PAINTED POLE |
CPI-PTD-11-STD | 11' STD PAINTED POLE | CPI-PTD-17-LW | 17' LW PAINTED POLE |
CPI-PTD-17-STD | 17' STD PAINTED POLE | ||
CPI-SP-2.5 | 30" STEEL POLE TOE | ||
CPI-SP-9-FAB | 9' FABRICTATED STEEL POLE |
